| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 1000pcs/month |
| Packing: | Carton, Plywood Case | Delivery Date: | 3 days after payment |
|---|---|---|---|
| Product Material: | Stainless Steel | Special Function: | Security |
| Position: | Room | Open Style: | Sliding |
| Brand Name: | ODY | OEM: | YES |
| Door leaf: | Single | Door weight: | 55kgsX2 Max |
| Motor power: | 30W,24V DC | Auto-reverse: | YES |
| Application: | Kichen;study;veranda etc. | Speed: | Adjustable |
| Door Track: | Aluminum alloy | Motor: | Brushless motor |
| Manual opening Force: | <50N |
1. Push and go funtion.
2. Simple design, easy installation.
3. Remote control speed, hold open time.
4. Automatic reverse.

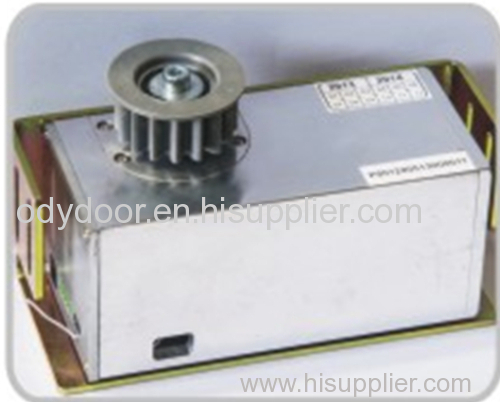

residential automatic sliding door
| Type | JQ-Public | |
| Door style | single leaf | double leaf |
| Door width | 600-1000mm | 500-900mm |
| Door weight.max | ≤85kgx1 | ≤55kgx2 |
| Power supply | A200-250V, 50/60Hz | |
| Voltage output | 12V DC | 24 DC |
Brushless Motor | 30W,24V DC | |
| Opening speed and closing speed | 15-50cm/s(adjustable) | |
Creep speed | 20~100mm/S | |
| Manual opening Force | <50N | |
| Hold-Close Force | <250N | |
| Hold-open time | 0-15s (adjustable) | |
| Environment temperature | -20ºC ~ +50ºC | |
1. Features
Simple device, easy to install, moderate speed, reliable performance. Brushless
micro-motor, microprocessor control. It can be connected with remote control, hand
sensor, foot sensor, microwave sensor etc.
2. Appliances
It is mainly used for kitchen door and separated door of home.
It is the most applicable to match a foot sensor for kitchen door, so you can open and
close the door easily with dishes in hand.
