| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 100pcs/month |
| Packing: | Carton, Plywood Case | Delivery Date: | 3 days after payment |
|---|---|---|---|
| Product Material: | Stainless Steel | Special Function: | Security |
| Position: | Interior | Open Style: | Swing |
| Brand Name: | ODY | OEM: | YES |
| Auto-reverse: | YES | Door weight: | 180 kg Max |
| Door leaf: | Double door | Speed: | Adjustable |
| Motor: | Brushless motor | Power supply: | 220VAC or 110VAC, 50/60Hz |
| Voltage output: | 15V DC, 24V DC | Brushless Motor: | 55W,24V DC |
| Net weight (kg): | 15kg |

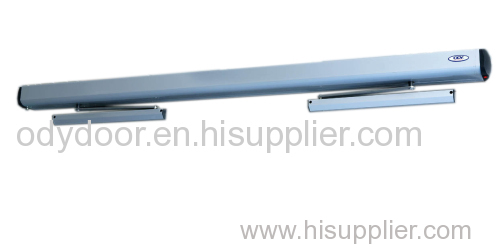

automatic swing door opener
1.Different length available
2.Double leaf
3.Easy installation
4.Module design,easy repair
automatic swing door opener
| Door style | single leaf or double leaf |
| Door width | 500mm~1200mm |
| Door weight | 180kgs.max |
| Power supply | 220VAC or 110VAC, 50/60Hz |
| Voltage output | 15V DC, 24V DC |
Brushless Motor | 55W,24V DC |
| Dimensions (mm) | 428x114x85 |
| Net weight (kg) | 15kg |
| Opening speed and closing speed | 3~10S |
| Hold-Open time (adjustable) | 1~10S |
| Push & open angle adjustable | 3~10 |
1. Auto reverse when an obstacle is encountered either in closing direction or opening direction.
2. Adopting worm and worm gear decelerator, super silence, no abrasion, long life.
3. Sliding arm and articulated arm both available, can open inside or outside.
4. Various opening modes: remote control, card reader, motion sensor, opening button etc.
5. Excellent reliability, over more than 2 million cycles durability tests.
6. Digitally change some parameters if needed, by adjustor.
7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled.
Category: automatic swing door operators
