| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 1000pcs/month |
| Packing: | Carton, Plywood Case | Delivery Date: | 3 days after payment |
|---|---|---|---|
| Product Material: | Stainless Steel | Special Function: | Security |
| Position: | Commercial | Open Style: | Swing |
| Brand Name: | ODY | OEM: | YES |
| Auto-reverse: | YES | Door leaf: | Single door |
| Door weight: | 180kg Max | Motor: | Brushless motor |
| Motor power: | 55W,24V DC | Power supply: | 220VAC or 110VAC, 50/60Hz |
| Net weight (kg): | 7 kg | Voltage output: | 15V DC, 24V DC |
| Speed: | Adjustable |

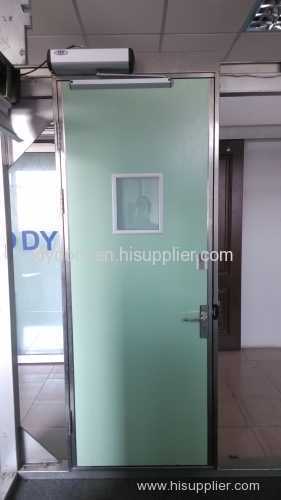

Automatic Door opener
1. Push & open
2. Auto reverse
3. Module design, easy to reaplce
3. Easy installation
Automatic Door Opener
| Door style | single leaf or double leaf |
| Door width | 500mm~1200mm |
| Door weight | 180kgs.max |
| Power supply | 220VAC or 110VAC, 50/60Hz |
| Voltage output | 15V DC, 24V DC |
Brushless Motor | 55W,24V DC |
| Dimensions (mm) | 428x114x85 |
| Net weight (kg) | 7 |
| Opening speed and closing speed | 3~10S |
| Hold-Open time (adjustable) | 1~10S |
| Push & open angle adjustable | 3~10 |
Advanced software
1. Push & open function(can be turn off if needed, such as windy environment).
2. Auto reverse when an obstacle is encountered either in closing direction or opening direction.
3. Various opening modes: remote control, card reader, motion sensor, opening button etc.
4. Having interfaces to connect fire alarm signal, backup battery and electric lock.
5. Digitally change some parameters if needed, by adjustor.
Adjustable parameters
1. Opening speed and closing speed: 3s~10s
2. Hold-Open time adjustable: 1-10s
3. Creep speed for opening adjustable
4. Creep speed for closing adjustable
5. Push & open angle adjustable
Simple and reliable structure
1. It consists of some modules, such as controller board, motor, easy to replace.
2. The motor transmission is simple and stable. Adopting worm and worm gear decelerator, super silence, no abrasion.
3. It is easy to open and close the cover for check.
4. Easy installation (first, install one mount plate on the wall, then use the screw to install whole automatic door opener on the mount plate)
5. Sliding arm and articulated arm both available, can open inside or outside.
6. Excellent reliability, over more than 2 million cycles durability tests.
7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled
Category: automatic swing door operators
