| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 1000pcs/month |
| Packing: | Carton, Plywood Case | Delivery Date: | 3 days after payment |
|---|---|---|---|
| Product Material: | Stainless Steel | Special Function: | Security |
| Position: | Commercial | Open Style: | Sliding |
| Brand Name: | ODY | OEM: | YES |
| Motor type: | Brushless motor | Door Track: | Aluminum alloy |
| Speed: | Adjustable | Door leaf: | Double or single |
| Opetaor style: | European style | Track length: | 6.3 long track, for 4 moving door leaf |
| Motor: | Brushless motor | Power supply: | 90VAC~250VAC, 50/60Hz |
| Door weight.max: | 130kgx4 |
Telescopic Door Operator
1. 6.3 long track, for 4 moving door leaf
2. Automatic door, Auto reverse
3. CE certifacated
Telescopic Door Operator
| Door style | 2 leaf or 4leaf |
| Door width | 650mm~1250mm |
| Door weight.max | 130x2kgs 130kgx4 |
| Power supply | 90VAC~250VAC, 50/60Hz |
| Voltage output | 12V DC, 24V DC |
Brushless Motor | 100W,24V DC |
| Opening speed and closing speed | 250~550mm/S |
Creep speed | 20~100mm/S |
| Manual opening Force | <7N |
| Hold-Close Force | 150N<f<250N |
| Hold-open time | 2-20s (adjustable) |
1. Impressive entrances
The LT-190CD telescopic sliding door operator maximizes the opening width and
provides an impressive solution when space is of prime criteria. LT-190CD is
available for bi-parting/four leaf and single slide/two leaf doors. It can also be adapted
to a wide range of different door and customer requirements.
2. Safety
Automatic safety auto reverse when an obstacle is encountered in closing direction.
The safety can be further improved by using Presence detection photocells .People or
objects in the doorway are detected and the door is then prevented from closing until
it is safe to do so.
3. Emergency
The LT-190CD can automatically opens or closes the doors(using battery pack up)–
in the event of a power failure.

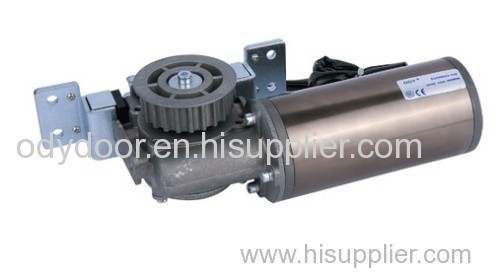

Motor

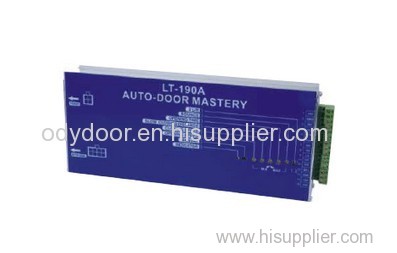

Controller

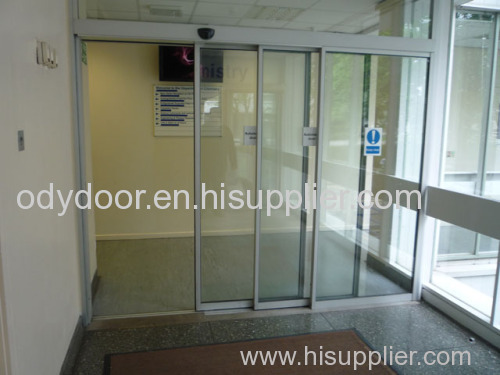

Case of successful service
Category: Special Doors
