| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 1000pcs/month |
| Packing: | Carton, Plywood Case | Delivery Date: | 3 days after payment |
|---|---|---|---|
| Product Material: | Stainless Steel | Special Function: | Security |
| Position: | Commercial | Open Style: | Sliding |
| Brand Name: | ODY | Packaging Details: | Carton, Plywood Case |
| Door Track: | aluminum alloy | Door leaf: | Double or single door |
| Motor: | Brushless motor | OEM: | YES |
| Motor Power: | 55W | Door weight: | Max 130kgsX2 |
| Auto-reverse: | YES | Work environment: | -20℃~50℃ |
| Hold-open time: | 0-9s (adjustable) |

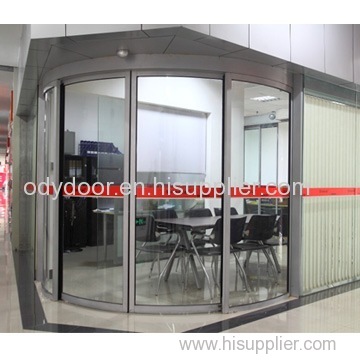

Automatic Curved Door
1. a wider opening than a flat sliding door
2. Auto reverse
3. CE certifacated
Automatic Curved Door
| Door style | single leaf or double leaf |
| Door width | 650mm~1067mm |
| Door weight.max | 130kgs 130kgsX2 |
| Power supply | 90VAC~250VAC, 50/60Hz |
| Voltage output | 12V DC, 24V DC |
Brushless Motor | 55W,24V DC |
| Opening speed and closing speed | 100~550mm/S |
Creep speed | 30~100mm/S |
| Manual opening Force | <100N |
| Hold-Close Force | 150N<f<250N |
| Hold-open time | 0-9s (adjustable) |

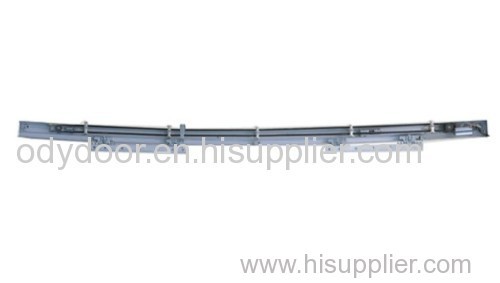

The LS-90H operator is specially designed for curved sliding doors.
1. The impressive and functional entrance
A curved sliding door gives a wider opening than a flat sliding door and at the same time provides
an impressive and enticing entrance.
2. Safety
Automatic safety auto reverse when an obstacle is encountered in closing direction.
The safety can be further improved by using Presence detection photocells .People or
objects in the doorway are detected and the door is then prevented from closing until
it is safe to do so.
3. Emergency
The LS-90H can automatically opens or closes the doors(using battery pack up)–in
the event of a power failure.
Motor

Contorller

Case of successful service
