| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 1000pcs/month |
| Packing: | Carton, Plywood Case | Delivery Date: | 3 days after payment |
|---|---|---|---|
| Product Material: | Stainless Steel | Special Function: | Security |
| Position: | Commercial | Open Style: | Sliding |
| Brand Name: | ODY | OEM: | YES |
| Auto-reverse: | YES | Operator style: | European style |
| Door Track: | Aluminum alloy | Door weight: | 200kg Max |
| Door leaf: | Double or single leaf | Motor: | Brushless motor |
| Motor power: | 75W,110V DC | Power supply: | 90VAC~250VAC, 50/60Hz |
| Work environment: | -20℃~50℃ |

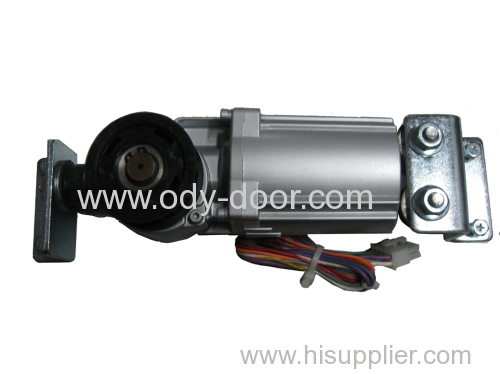

automatic glass sliding door.
1. 100W motor, for heavy-duty doors.
2. Auto reverse.
3. CE certificated.
automatic glass sliding door
| Door style | single leaf or double leaf |
| Door width | 700mm~1500mm |
| Door weight.max | 200kgs 180kgsX2 |
| Power supply | 90VAC~250VAC, 50/60Hz |
| Voltage output | 24V DC, 36V DC ,110V DC |
Brushless Motor | 75W,110V DC |
| Opening speed and closing speed | 250~550mm/S |
Creep speed | 20~100mm/S |
| Manual opening Force | <50N |
| Hold-Close Force | 150N<f<250N |
| Hold-open time | 1-30s (adjustable) |
1. T-1500 can be adapted to a wide range of different door and customer requirements.
2. Easy installation
During the installation the operator is programmed to comply with the customers specific requirements.
3. Safety
Automatic safety auto reverse when an obstacle is encountered in closing direction.
The safety can be further improved by using safety beam sensors. People or objects in
the doorway are detected and the door is then prevented from closing until it is safe to
do so.
4. Emergency
The T-1500 can automatically opens or closes the doors(using battery pack up)
–in the event of a power failure.
5. Self-monitoring
The microprocessor has an integral self-monitoring device which detects any
interference or faulty signals in door operation and takes necessary measures to ensure
a safe operation.
Category: automatic sliding door operators
