| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 1000pcs/month |
| Packing: | Carton, Plywood Case | Delivery Date: | 7 days after payment |
|---|---|---|---|
| Product Material: | Stainless Steel | Special Function: | Security |
| Position: | Commercial | Open Style: | Sliding |
| Brand Name: | ODY | OEM: | YES |
| Auto-reverse: | YES | Door Track: | Aluminum alloy |
| Door weight: | 130kgsX2 Max | Door leaf: | Double or single |
| Motor: | Brushless motor | Motor power: | 55W,24V DC |
| Speed: | Adjustable | Work environment: | -20℃~50℃ |
| Manual opening Force: | <50N |
1. With spiral bevel gear motor, much longer life than worm gear motor
2. Remote conrtol the speed, hold open time
1. With spiral bevel gear motor, much longer life than worm gear motor
2. Remote conrtol the speed, hold open time
3. Auto reverse in the whole opening and closing process, when encountering small resistance, even finger touch, much safer.
4.Technical data

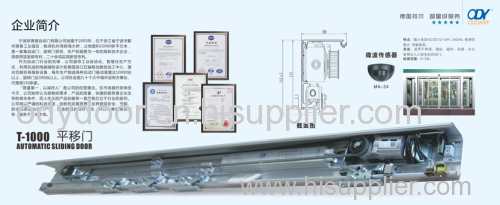

| Type | T-1000 | |
| Door style | single leaf | double leaf |
| Door width | 650mm-1850mm | 600-1500mm |
| Door weight | ≤150kgs | ≤125kgx2 |
| Power supply | AC220V, 50/60Hz | |
| Voltage INput | DC12-24V, 24GHZ | |
Brushless Motor | 55W,24V DC | |
| Opening speed | 15-55(adjustable) | 10-55(adjustable) |
| Closing speed | 15-55(adjustable) | 10-55(adjustable) |
| Manual opening Force | <50N | |
| Hold-Close Force | 150N<f<250N | |
| Hold-open time | 1-25s (adjustable) | |
| Auto reverse | auto-reverse during the whole process of opening and closing when encountering small resistance | |
| Apply for | Suitable for hotels, restaurants, supermarkets, shops, offices and other out of people more automatic doors | |
Motor
Contorller
Certificates
Category: automatic sliding door operators
