| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | D/P, D/A, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 100pcs/month |
| Packing: | Carton, Plywood Case | Delivery Date: | 3 days after payment |
|---|---|---|---|
| Product Material: | Stainless Steel | Special Function: | Security |
| Position: | Commercial | Open Style: | Sliding |
| Brand Name: | ODY | OEM: | YES |
| Auto-reverse: | YES | Lead glass window: | 400mmx500mm |
| Sliding track: | Aluminum alloy | Door core: | Lead plate and PU |
| Handle: | 304 stainless steel | Door frames: | 304 stainless steel |
| Door material: | Powder coated steel | Motor: | Brushless motor |
| Motor power: | 100W,24V DC |

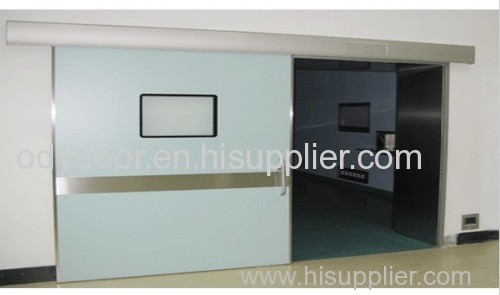

Hermetic Door
1. Widely used in the operating room,clean room
2. Automatic,Sealed, Silent, Reliable
Hermetic Door
| Door style | single leaf or double leaf |
| Door width | 650mm~1300mm |
| Door weight.max | 200kgs 150kgsX2 |
| Power supply | 90VAC~250VAC, 50/60Hz |
| Voltage output | 12V DC, 24V DC |
Brushless Motor | 100W,24V DC |
| Opening speed and closing speed | 250~550mm/S |
Creep speed | 20~100mm/S |
| Manual opening Force | <50N |
| Hold-Close Force | 150N<f<250N |
| Hold-open time | 2-20s (adjustable) |
1. Sealed–Silent–Reliable
LSQ hermetically sealing sliding door is especially designed for use in clean room environments,
such as operating theatres, pharmaceutical production facilities, food preparation facilities, labs
and other areas where clean, hygienic, well-sealing doors are required. LSQ Hermetic system
consists of operator, door and door frames. During the installation the Operator is programmed to
comply with the customer's specific requirements.
2. Safety
Automatic safety auto reverse when an obstacle is encountered in closing direction. The safety can
be further improved by using Presence detection photocells .People or objects in the doorway are
detected and the door is then prevented from closing until it is safe to do so.
3. Design
The operator cover is designed to prevent collection of dust and is easy to clean. The door leaf
consists of injected polyurethane faced with stainless steel or aluminum on both sides. There are
rubber seal on fours sides of door leaf, clinging to three aluminum posts (with rubber seal in the
middle) against wall. This will give full hermetic seal. The door can also be manually opened by
means of handles on both sides of the door.
Category: Hospital Doors/Hermetic Doors
